JPL Vision Mini FHD WebCam with 2 Omni-directional Mics (67° view - tri-fold hinged bracket)
JPL Vision Mini FHD WebCam with 2 Omni-directional Mics (67° view - tri-fold hinged bracket)
JPL Vision Mini FHD WebCam with 2 Omni-directional Mics (67° view - tri-fold hinged bracket)
  • SKU: 575-354-001

JPL Vision Mini FHD WebCam with 2 Omni-directional Mics (67° view - tri-fold hinged bracket)

DESCRIPTION

JPL Mini


JPL Mini Platforms

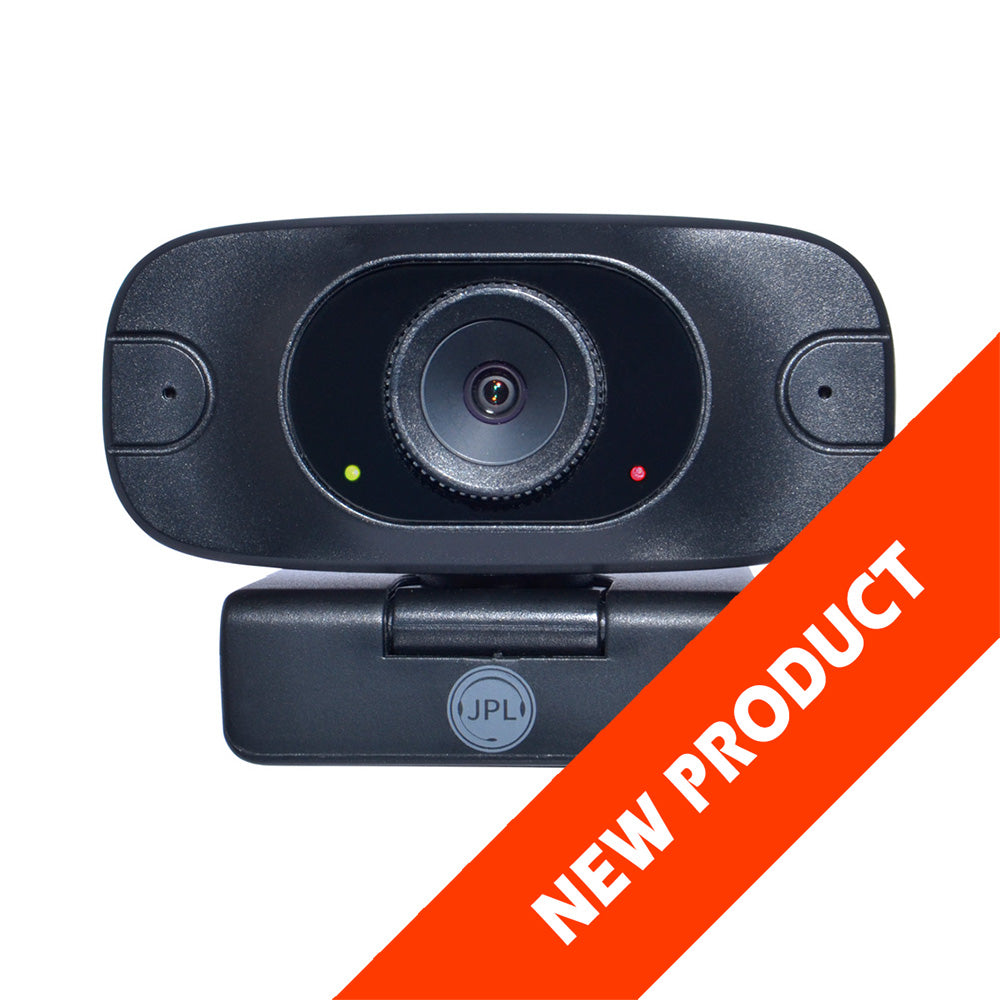

The JPL Vision Mini is JPL's smallest 1080p USB webcam
with full HD glass lens

The webcam has a tri-fold hinged bracket with a gripper foot so it can be placed securely above your computer or laptop to allow long-distance face-to-face meetings from your conference room or home office.

Compatible with all major softphones: Plug & play solution – No additional software or downloads needed.

KEY FEATURES:

  • 67° angle field of view
  • Full HD 1080p CMOS glass lens
  • 2 Built-in full duplexed microphones
  • Built in power-to-camera & camera in-use LED indicators
  • 360° camera rotation including 90° tilt for over desk viewing
  • USB 2.0 Type-A connectivity
  • Full adjustable mount with folding bracket (Desk mount, monitor mount or tripod option)
  • Automatic low-light correction
  • AEC – Automatic Echo Cancellation
  • ANS – Automatic Noise Suppression
  • Privacy lens cover included

TECHNICAL SPECIFICATIONS:

CAMERA:

  • Maximum effective pixel: 2 million pixels
  • Lens size: 1/2.7 inch
  • Aperture: 2.5±5%
  • Image area: 5.85mm x 3.27mm
  • Maximum effective pixel: 1920 (H) x 1080 (V) 2.0 million pixels
  • Output image format: MJPG and YUY2
  • Field of view: 67°(W)
  • AIC:
    • Automatic Exposure (AE)
    • Auto White Balance (AWB)
    • Dynamic Black Level Calibration (ABLC)
  • Resolution:
    • 1920 x 1080 @ 30fps
    • 1280 x 720 @ 30fps
    • 640 x 480 @ 30fps

MICROPHONE:

  • S/N ratio: ≥60dB
  • Sensitivity: -42±3dB(0dB=1V/pa,1KHz)
  • Far-field distance 0~2 meters
  • Horizontal voice pickup: 180°
  • Communication mode: Full Duplex
  • AIC:
    • Automatic gain control
    • Automatic noise reduction control
    • Automatic echo noise reduction control

DIMENSIONS:

  • 72 x 33 x 31.7mm

WARRANTY:

  • 2-year replacement warranty against manufacturing defects
